Descripción del producto:

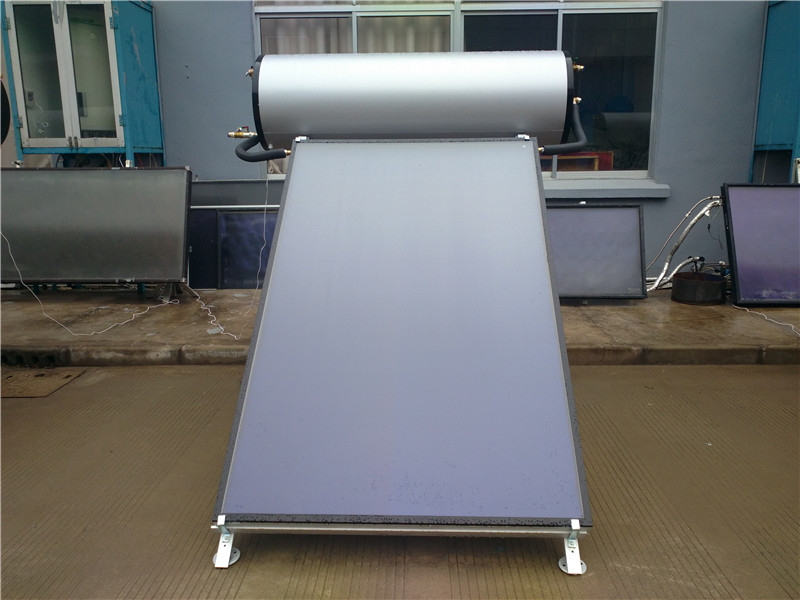

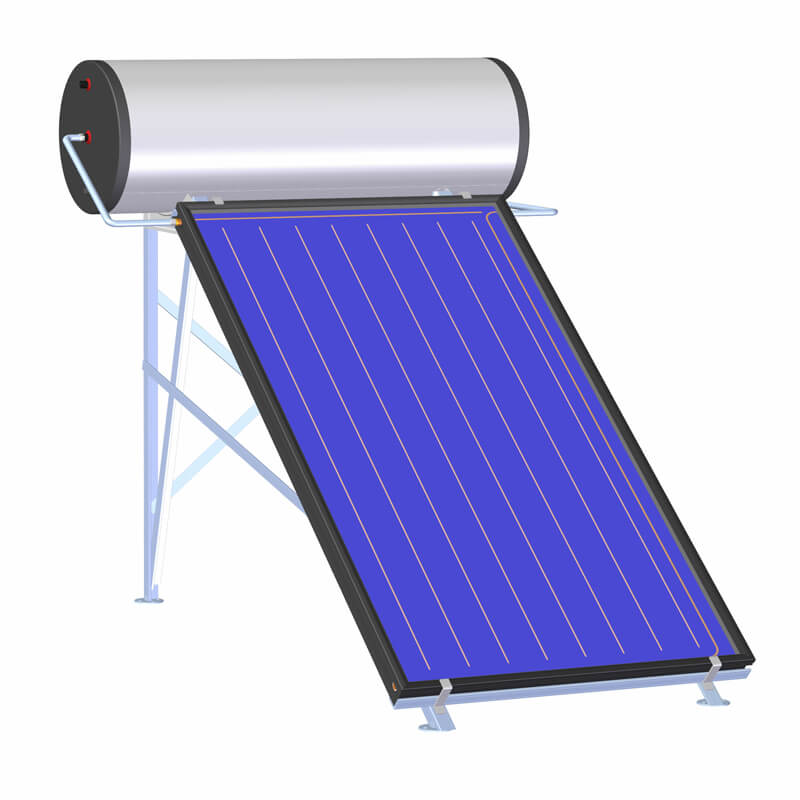

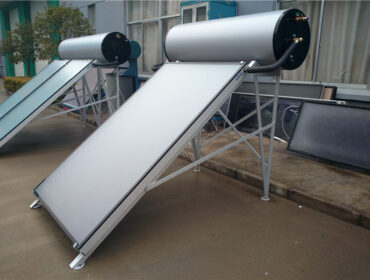

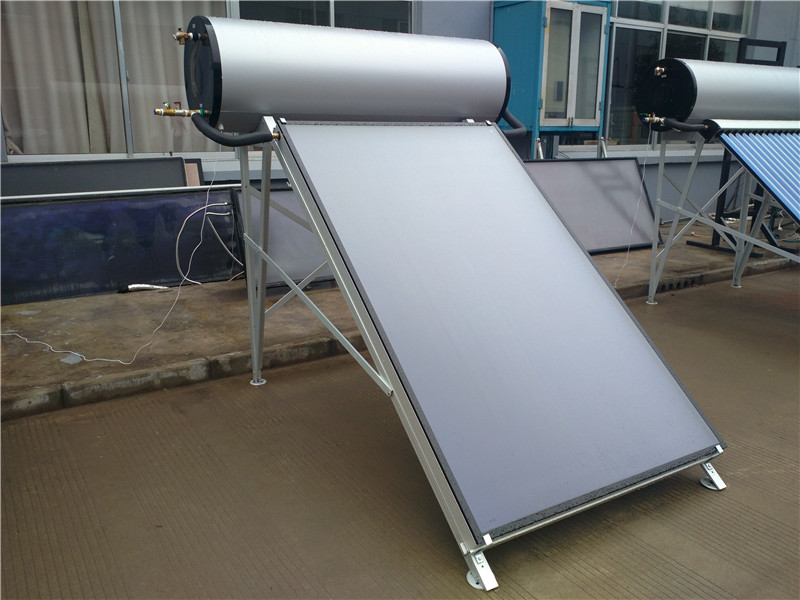

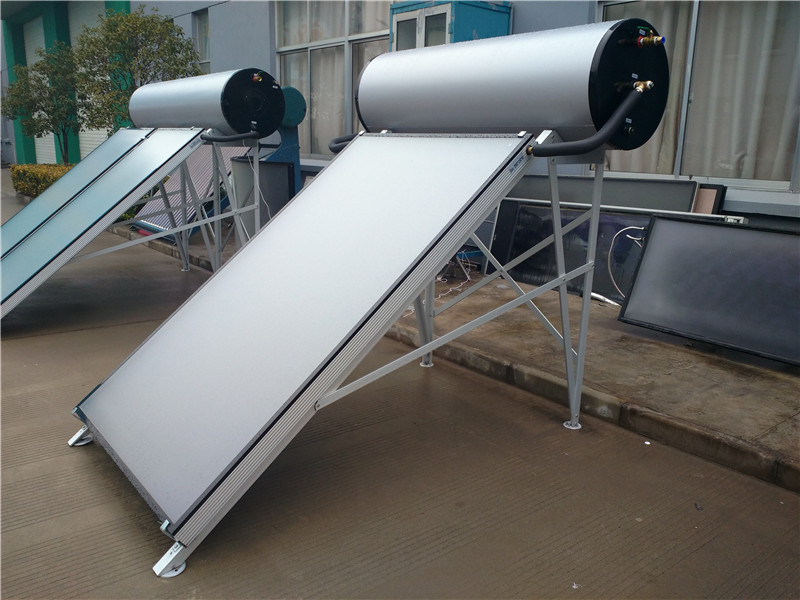

Se trata de un sistema presurizado, con depósito directo y colector solar plano combinados, que denominamos calentador de agua solar presurizado compacto de panel plano.

Los sistemas de circuito abierto son una forma sencilla y rápida de calentar agua. Son más adecuados para regiones de clima cálido porque funcionan directamente con agua potable. Los sistemas de circuito abierto no se recomiendan en regiones donde la calidad del agua no es lo suficientemente buena.

Características del producto:

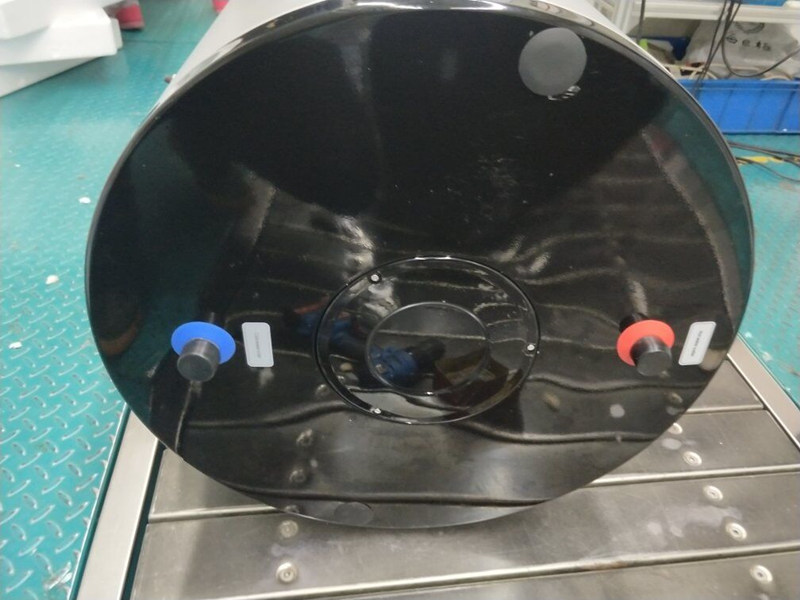

inner tank without heat exchanger

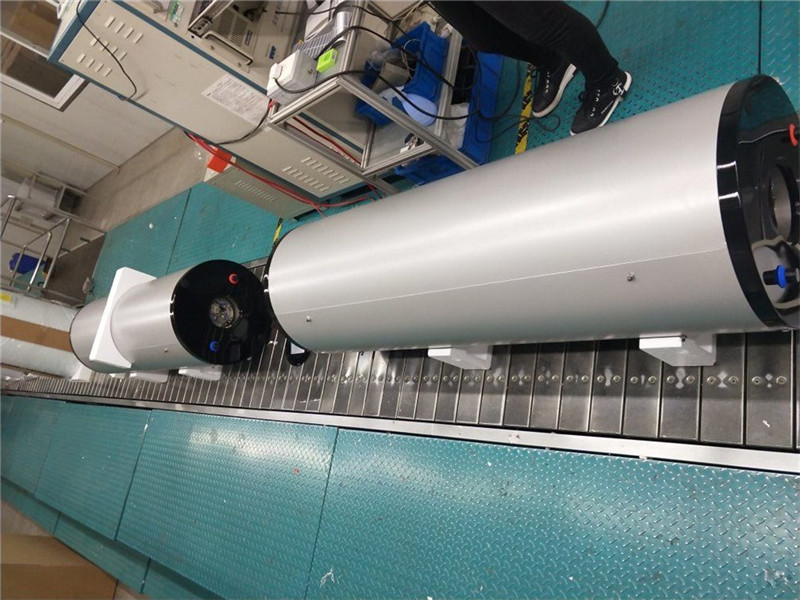

El esmalte está recubierto en el interior del tanque de agua que es de alta resistencia a la corrosión y de gran presión de soporte. Nuestros tanques de esmalte de porcelana aprobados por CE, WATER MARK, ETL, WRAS, EN12977-3
SKTodo el sistema homologado por SOLAR KEYMARK (Norma EN 12976)
flat-panel-solar-collectorAbsorbedor de titanio azul importado de Alemania con alta capacidad de absorción (95%) y baja pérdida de calor (5%). Tubos de cobre libre de oxígeno de alta pureza como sistema de circulación con alta conductividad térmica, anticorrosión y vida útil más larga. Vidrio solar templado de bajo contenido en hierro como cubierta con una transmitancia del 92%. Nuestro colector solar plano está aprobado por SOLAR KEYMARK (Norma EN12975).

Piezas de alta calidad:

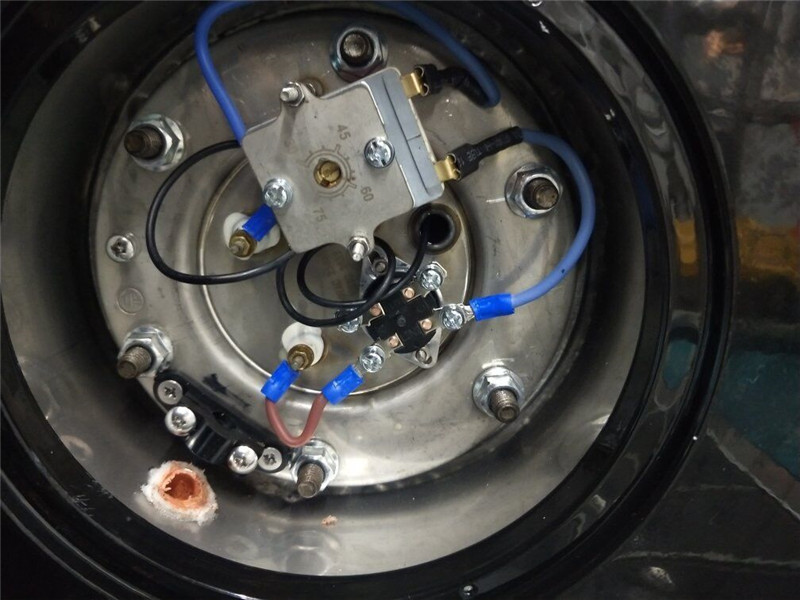

round-flange-heating-element-150x150Elemento eléctrico Incoloy 800
Aprobado por la CE
pressure-and-temperature-relief-valve-150x150Válvula de seguridad P/T
Marca de agua aprobada
solar-water-heater-system-controller-150x150Controlador inteligente
Aprobado por la CE

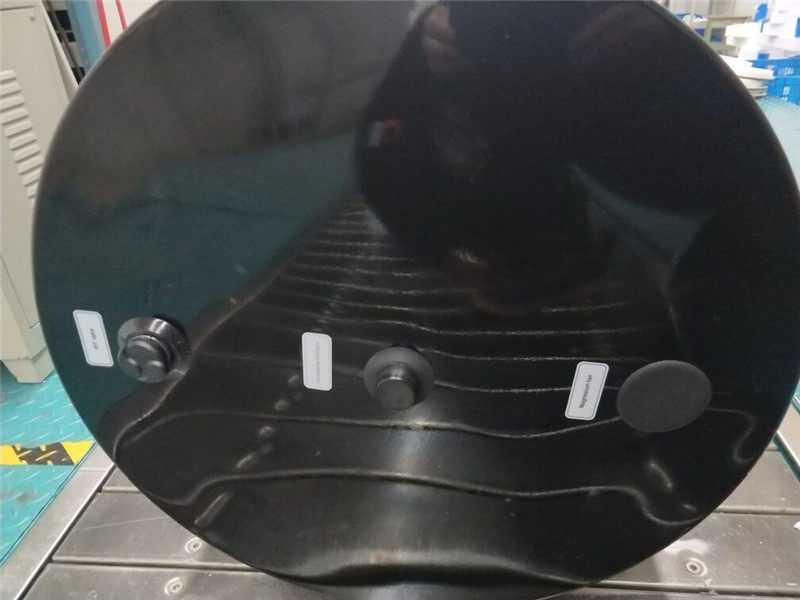

3.0mm-thick-enameled-side-plate-with-magnesium-anodeÁnodo de magnesio

Parámetros técnicos:

Tanque de agua directo:

Tank Capacity100L150L200L250L300L
Outer Tank Diameter(mm)Φ540Φ540Φ540Φ540Φ540
Inner Tank Diameter(mm)Φ440Φ440Φ440Φ440Φ440
Inner Tank MaterialSteel BTC340R(2.5mm thick)
Inner Tank CoatingPorcelain Enamel(0.5mm thick)
Outer Tank MaterialColor Steel(0.5mm thick)
Insulating materialRigid polyurethane foam
Insulation thickness50mm
operating Pressure6bar
Corrosion protectionmagnesium anode
Electric ElementIncoloy 800(2.5kw,220v)
Adjustable Thermostat30℃~75℃
TP Valve7bar,99℃(water mark approved)

Colector solar plano:

Dimension2000*1000*80mm
Gross area2m2
Aperture area1.85m2
AbsorberAluminum Plate
Selective CoatingMaterialGermany Blue Titanium
Absorptivity≥95%
Emissivity≤5%
Header PipesCopper (¢ 22*0.8mm)/(¢ 25*0.8mm)
Riser PipesCopper (¢ 8*0.6mm)/(¢ 10*0.6mm)
Cover PlateMaterialLow - iron tempered glass
Transmittance≥92%
FrameAluminum alloy
Base plateGalvanized plate
Base InsulationGlass wool
Side Insulationpolyurethane
Sealing materialEPDM
Max test pressure1.4MP
Max work pressure0.7MP

Cómo funciona:

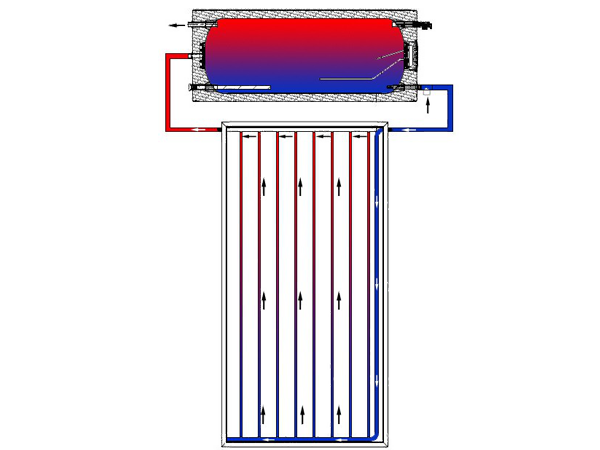

El sistema funciona según el principio de termosifón, adopta el tipo de circulación agua-agua. La membrana de adsorción de calor de la placa plana absorbe el calor solar para calentar directamente el agua en el colector de calor. El agua calentada se suministra a la parte superior del acumulador de agua caliente a través de la tubería de circulación y el agua fría no calentada de la parte inferior fluye hacia el colector de calor de tipo plano como suplemento. A continuación, el agua fría se calienta y se envía al acumulador de agua caliente. La circulación del agua se repite hasta que toda el agua del depósito se calienta a la temperatura especificada.

Open Loop Flat Panel Solar Water Heater Works

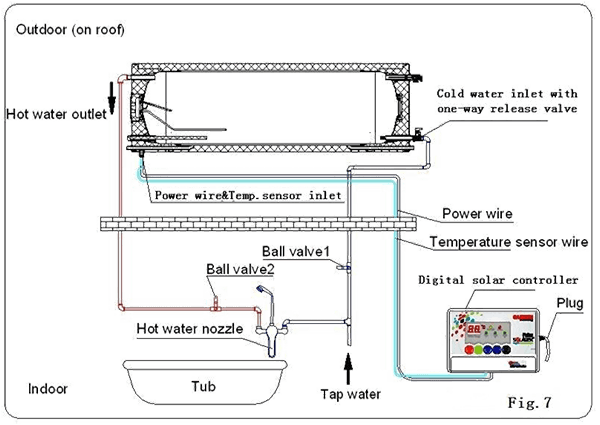

Diagrama de instalación del sistema

Manual de instalación y funcionamiento:

DownloadFeaturesMain ComponentsMethod of InstallationNoticesCommon Failures and Troubleshooting
Open Loop Flat Panel Solar Water Heater Manual

1.1 Advanced technology
The core parts of the solar water heater – flat plate solar collector and enameled steel inner tank involve numerous national patented technologies. The solar collector with advanced technology in gathering solar energy features water-tightness, high heat absorption, independent heat supply, fast energy output, wide scope of application and long working life.

1.2 Low heat loss
With imported polyurethane foam en-bloc high pressurized, which is of high density and strength, the solar water heater has excellent heat insulation.

1.3 Superb process technology
The inner tank is made of special steel, formed up with advanced punching technology and auto non-electrode replacing welding technology. A special silicate is sintered by high temperature to the inner tank’s walls, forming a special protection layer featuring freedom of leakage, rust/erosion and scaling, thereby effectively preventing leakage between the water tank and the heat-gathering tubing and ensuring the cleanness of water.

1.4 Easy for functional extension
This solar water heater can be equipped with a computerized controller and electric heater. The user has a few options depending on his actual needs.


2.1 Flat plate panel
Flat plate panel
2.2 Water tank
Open Loop Flat Panel Solar Water Heater Water tank
2.3 Bracket (sloping roof & flat roof)
2.3.1 Sloping roof bracket
Sloping roof bracket
2.3.2 Flat roof bracket
Flat roof bracket

3.1 Installation of solar panel
Installation of solar panel
The flat panel(s) is fixed with the “Z” fasteners:
The flat panel(s) is fixed with the “Z” fasteners
3.2 Installation of Water Tank and Bracket
Firstly fix the hunger on the tank.
hunger on the tank
Then set water tank symmetrically on the bracket and fixed with the M9 nuts.
set water tank symmetrically on the bracket and fixed
3.3 Connection between solar panel and water tank
Please pay attention to the following drawing and picture when installing pipelines.
Connection between solar panel and water tank
Connection between solar panel and water tank 2
Connection between solar panel and water tank
If solar water heater is equipped with two or three units of solar collectors, please see the connection of two solar collectors from the marks C and D.
3.4 Installing computerized controller
If the solar water heater is equipped with one computerized controller, please carefully read the Controller’s User Manual before installing and operating the Controller.

The Controller should be located in a prominent location that is accessible to the homeowner. Care should be taken to ensure that the controller is not placed where it is within easy reach of children, near electromagnetic fields or in damp locations.

Attention!
▲ The socket and plug should be connected well.
▲ If electric heater is installed, do connect the live wire, null wire and ground wire correctly with power-leakage protection plug. The socket should be connected to ground reliably.
▲ Use tri-wire plug of safe protection, and the rated current value of socket ≥10A.
▲ Wiring according to controller instruction manual.


4.1 Prohibition of isolation without water
Under normal circumstances, keep the water tank full. If the solar water heater is not used for a long time, the heat collecting tubes should be covered with shade cloth.

4.2 No shadow
The solar collectors face south without shelter.

4.3 Wind stress
When installing solar water heater, please consider the issue of wind resistance, and resultant stress on attachment points.

4.4 P/T valve

4.4.1 Please refer to separate P/T valve instruction manual for operating.
4.4.2 Following installation, the P/T valve lever MUST be operated AT LEAST ONCE A YEAR by the solar water heater owner to ensure that waterways are clear.
4.4.3 The P/T valve should be inspected AT LEASE ONCE EVERY TWO YEARS, and replaced, if necessary.

4.5 Magnesium anode
The magnesium anode should be inspected at the timely basis to extend the life of water tank according to water quality.
Replace the magnesium anode AT LEAST ONCE TWO YEARS.

4.6 Water Quality
In areas with “hard” water, lime scale may foam inside the safety valve and P/T valve. In such regions, it is advisable to install a water softening device.

4.7 Expansion tank
In areas with high temperature weather, the pressure inside water tank rises quickly. It is an optional means to install a suitably sized expansion tank significantly minimize the amount of hot water dumped by the P/V valve due to overpressure.

Assembly, maintenance and repair shall be carried out only by qualified technicians. If the problems fail to be solved, please contact the local distributors/installers.
